BMW 1 Series ABS pump fault causing brake binding.

This ABS pump for BMW 1 Series (F20, F21) is a common failure that causes brake binding, sticking the brake caliper on when the brake pedal is depressed (even after releasing the brake pedal). Commonly rear brake binding will occur, but this can also happen on the front brakes. Most often affecting the 116 and 114 models, this fault extends to the entire 2011-2019 BMW 1 Series range.

You will also find that the brakes are automatically applied when the windscreen wipers are active and has been known to slow the vehicle drastically without the driver depressing the brake pedal.

This 1 Series ABS fault will not illuminate the ABS warning light or log any faults within the ABS module, so there is no warning before or during the malfunction.

With this fault affecting the 2010-2015 1 Series range most garages will seek to resolve this brake lock-up issue by purchasing a replacement ABS pump from the manufacturer. However, this is very expensive, will incur a programming fee, and due to the issue not being resolved at the factory all replacements are predisposed to fail in the future (usually after the short one-year manufacturer warranty).

We have a better solution to replacement: we can rebuild your original 1 Series ABS pump and module at a fraction of the cost of buying new. Not only this but we retain all original programming, work-out the original design flaw and provide a full unlimited mile Lifetime Warranty all within 2-3 working days.

You can rest assured that the rebuilt 1 Series ABS pump will no longer cause the brakes to bind/lock up.

Common Failure symptoms:

• Brakes locked on all the time after brake pedal pressed / brakes not releasing
• Windscreen wiper activation automatically applies the brakes
• Brake pads locked on / locked up
• Brakes ‘binding’

Common failing part numbers:

1 Series

• 6871110 / 10.0917-0855.3 / 10.0220-0649.4
• 6868638 / 10.0916-0880.3 / 10.0220-0450.4
• 6887510 / 10.0918-6521.3 / 10.0399-4929.4
• 6881173 / 10.0917-6500.3 / 10.0399-4766.4
• 6887741 / 10.0918-6506.3 / 10.0399-4942.4
• 6868645 / 6881174 / 6875562 / 6870919 / 6875817 / 6871113 / 6887744 / 6887513 / 6891615 / 6869725 / 6870912 / 6869726 / 6869725 / 6870418 / 6875814 / 6875559 / 6861376 / 6868319 / 10.0917-0816.3 / 10.0220-0409.4 / 10.0916-0859.3 / 10.0622-3722.1 / 10.0220-0517.4 / 10.0917-0840.3 / 10.0917-6520.3 / 10.0916-0852.3 / 10.0622-3532.1 / 10.0916-0854.3

2 Series

• 6868638 / 10.0916-0880.3 / 10.0220-0450.4
• 6868645 / 6881174 / 6875562 / 6870919 / 6875817 / 6871113 / 6887744 / 6887513 / 6891615 / 6869725 / 6870912 / 6869726 / 6869725 / 6870418 / 6875814 / 6875559 / 6861376 / 6868319 / 10.0917-0816.3 / 10.0220-0409.4 / 10.0916-0859.3 / 10.0622-3722.1 / 10.0220-0517.4 / 10.0917-0840.3 / 10.0917-6520.3 / 10.0916-0852.3 / 10.0622-3532.1 / 10.0916-0854.3

2 Series Active Tourer

• 6872311 / 10.0916-0897.3 / 10.220-0475.4

3 Series

• 6897114 / 10.0918-6586.3 / 10.0627-3735.1
• 6871110 / 10.0917-0855.3 / 10.0220-0649.4
• 6868645 / 6881174 / 6875562 / 6870919 / 6875817 / 6871113 / 6887744 / 6887513 / 6891615 / 6869725 / 6870912 / 6869726 / 6869725 / 6870418 / 6875814 / 6875559 / 6861376 / 6868319 / 10.0917-0816.3 / 10.0220-0409.4 / 10.0916-0859.3 / 10.0622-3722.1 / 10.0220-0517.4 / 10.0917-0840.3 / 10.0917-6520.3 / 10.0916-0852.3 / 10.0622-3532.1 / 10.0916-0854.3

4 Series

• 7852637 / 10.0916-0882.3 / 10.0220-0452.4
• 6868645 / 6881174 / 6875562 / 6870919 / 6875817 / 6871113 / 6887744 / 6887513 / 6891615 / 6869725 / 6870912 / 6869726 / 6869725 / 6870418 / 6875814 / 6875559 / 6861376 / 6868319 / 10.0917-0816.3 / 10.0220-0409.4 / 10.0916-0859.3 / 10.0622-3722.1 / 10.0220-0517.4 / 10.0917-0840.3 / 10.0917-6520.3 / 10.0916-0852.3 / 10.0622-3532.1 / 10.0916-0854.3

(Can't see your part number? Click your model above to view our full ABS catalogue for that vehicle)

How to diagnose:

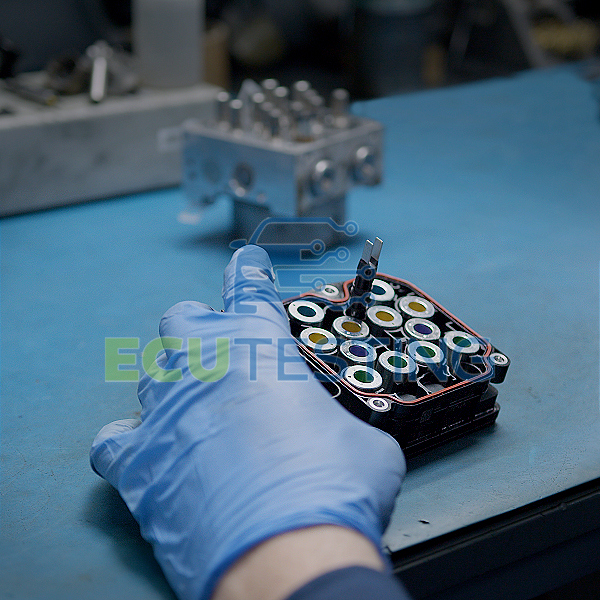

Test and rebuild:

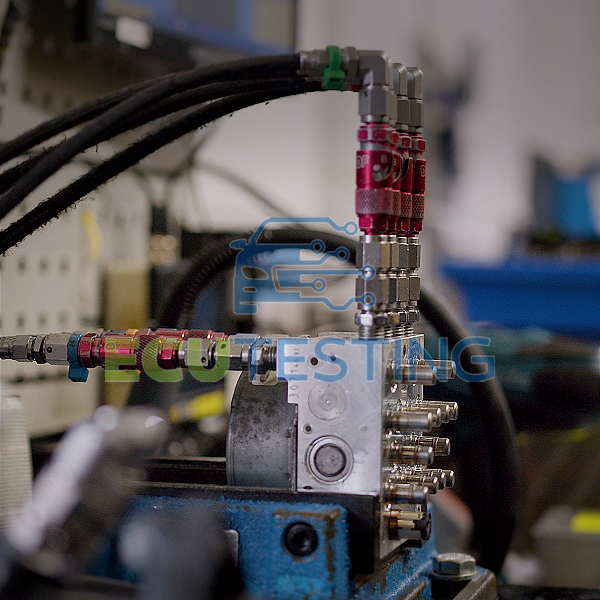

We test every unit beyond the operating parameters of the vehicle so we know that once a unit is rebuilt it will outlast the vehicle. We only use higher rated than standard components within our rebuilds. Testing of the BMW ABS unit is performed before and after the rebuild to ensure that the ABS meets or exceeds the OEM specifications.

Programming:

The original programming information is retained for each BMW 1 Series ABS during testing and rebuild, meaning the unit is plug and play after a brake system bleed.

Quality:

Our work defect rate is lower than 0.49% on all of our rebuilds and we are extremely proud of our Lifetime Warranty standards encompassing testing, workmanship, components and ESD safety. This is why main dealerships and specialists across the globe use our rebuild services.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild select you part number above and click: Get yours rebuilt

Print the payment/booking confirmation email.

Package the BMW 1 Series ABS pump inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your 1 Series ABS pump with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the 1 Series ABS pump and module inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your ABS pump and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your 1 Series ABS pump and return it to you with an unlimited mileage warranty.

If you require further information regarding this BMW 1 Series ABS pump then please contact us.
